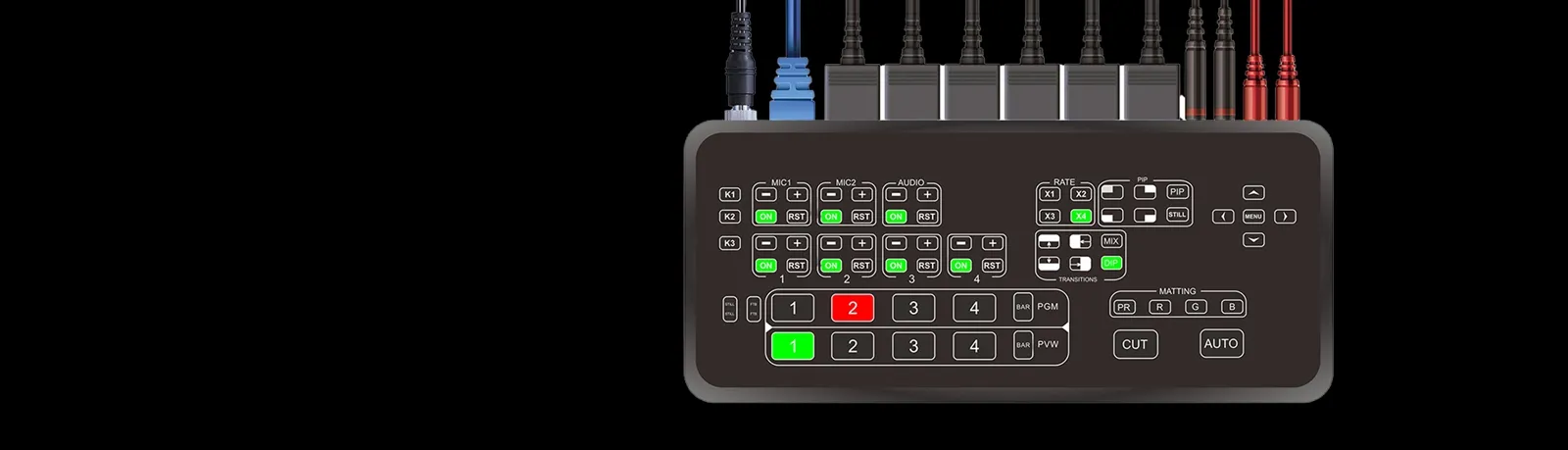

HDMI Live Stream Switcher
This HDMI Live Stream Switcher supports RGB Matting Function. One-key pressing, you can change the background into any scenario. It's perfect for sport live streaming and on-live game streaming.
Transform your live production with the HD Video Switcher: 4 HDMI inputs, PVW/PGM outputs, and audio mixing (HDMI embedded + external). Streamline switching with Type-C capture for OBS, vMix, and live streaming. Ideal for studios, webcasts, and events. Seamless HDCP-compliant switching, real-time preview, and multi-software integration.
HDMI HD Video Switcher Support RGB(Red, Green or Blue) background cutout; and can adjust the tint according to the shade of the studio filter's background color in software.
- Support PIP for PVW and PGM, support adjust the window size and position, and support screen freeze.
- HDMI input signal is automatically adapted for above 720P resolution,1080P output signal resolution can
- be selected according to requirements(1080p60/1080p50/1080p30/1080p25/1080p24), which is quite flexible.
Support hard-cutting with CUT key and AUTO special effect switch,and the transition speed can be adjusted with RATE keys(X1, X2, X3, X4).
- Widely used for video conferences, live broadcasts, weddings, radio
- and television, program production, outdoor sports, teaching courses, and others video switching scene.
The live HD Video switcher supports various capture and streaming software on the market.
Technical Parameters
|
INTERFACE |
|
|
Video input |
4-Port HDMI-A |
|
Video output |
2-Port HDMI-A, 1-Port usb2.0 |
|
Audio input |
1 * 3.5mm audio, 2 * Microphones |
|
Audio output |
1 * 3.5mm stereo audio |
|
Rj45 |
10/100 BaseT network interface |
|
Power input |
DC power |
| BASIC PARAMETERS | |
|
Video input standard |
720p50,720p60,1080p60,1080p50,1080p30,1080p25,1080p24,1080p23,1080i60,1080i50 |
|
Computer video input standard |
720p50,720p60,1080p60,1080p50,1080p30,1080p25,1080p24,1080p23,1080i60,1080i50,1680x1050,1360x768, 1280x1024,1280x960,1280x800,1280x768,1024x768,800x600 |
|
Video output standard (PGM) |
1080p60,1080p50,1080p30,1080p25,1080p24 |
|
Video output standard (PVW) |
1080p60 |
|
Color space |
RGB |
|
Color space conversion |
Automatic |
| WORKING ENVIRONMENT | |
|
Operating temperature |
0-70℃ |
|
Storage temperature |
-10℃- 85℃ |
|
Humidity |
0 %-90 %(non-condensing) |
| CONTROL | |
|
Audio control |
7 sets of audio input control buttons, which can control sound addition and subtraction, switch, reset |
|
Video control |
PVW and PGM video channel switching, switching special effects, picture-in-picture, screen filter function selection |
|
Menu |
Device status can be controlled and viewed through MENU |
|
Function keys |
K1 resolution switch, K2 reset initial state, K3 mute |
| SOFTWARE | |
|
Software |
Swicher Mini |
